LABO 100 PRO-ACTIVE

This laboratory refrigerator can be installed normally as well as in an undercounter installation. Door coupling fittings or decorative frames are available at an extra cost. When the device is being installed as a stand-alone unit we can optionally supply a matching tabletop.

Capacity 95 l
Temperature setting (approx.) +2 to +15 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power draft 76 Watts
Average consumption 0,64 KWh / 24 h
Overall dimensions (incl. distance from wall) 54 x 54 x 82 (w x d x h in cm)
Interior dimensions 44 x 43 x 47 (w x d x h in cm)
Overall dimensions with door opened at 90° 54 x 106 (w x d in cm)
Drawer inner dimensions 40 x 32 x 5,6 (w x d x h in cm)
Shelf dimensions 43 x 36 (w x d in cm)
Max. loading capacity per drawer/shelf 13 kg / 25 kg
Weight 46 kg / 50 kg (net / gross)

(measured values based on Ecool R600a)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 2 shelves
• Re-circulating air cooling
• Undercounter type
• Warning in case of power failure (optical and acoustic)
• Automatic defrosting
• Meltwater evaporation
• Easy-to-read LED temperature display
• Automatical defrosting and meltwater evaporation
• Easily accessible control panel with key switch
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Safety device to prevent freezing
• Optical and acoustical alarm
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Low-noise compressor (noise level I; sounds perception: whisper)
• Lockable door

LABO 126 PRO-ACTIVE

This laboratory refrigerator can be installed normally as well as in an undercounter installation.

Capacity 120 l
Temperature setting (approx.) +2 to +15 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power draft 105 Watts
Average consumption 0,58 KWh / 24 h
Overall dimensions (incl. distance from wall) 54 x 53,5 x 88,8 (w x d x h in cm)
Interior dimensions 44 x 42 x 67 (w x d x h in cm)
Overall dimensions with door opened at 90° 54 x 106 (w x d in cm)
Shelf dimensions 43 x 33 (w x d in cm)
Max. loading capacity per shelf 25 kg
Weight 47 kg / 57 kg (net / gross)

(measured values based on Ecool R600a)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 2 shelves
• Undercounter type
• Adjustable feet
• Warning in case of power failure (optical and acoustic)
• Automatic defrosting
• Easy-to-read LED temperature display
• Easily accessible control panel with key switch
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Lockable door

LABO 288 PRO-ACTIVE

This laboratory fridge comes with 3 shelves as standard.

Capacity 280 l
Temperature setting (approx.) +2 to +15 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power draft 88 Watts
Average consumption 0,68 KWh / 24 h
Overall dimensions (incl. distance from wall) 67 x 75 x 124 (w x d x h in cm)
Interior dimensions 53 x 50 x 100 (w x d x h in cm)
Overall dimensions with door opened at 90° 67 x 135 (w x d in cm)
Shelf dimensions 52 x 39 (w x d in cm)
Max. loading capacity per drawer/shelf 40 kg
Weight 78 kg / 85 kg (net / gross)

(measured values based on Ecool R600a)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 3 shelves, height- adjustable
• Re-circulating air cooling
• Warning in case of power failure (optical and acoustic)
• Optimized ventilation plates to minimize interior temperature differences
• Easy-to-read LED temperature display
• Automatical defrosting and meltwater evaporation
• Easily accessible control panel with key switch
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Safety device to prevent freezing
• Optical and acoustical alarm
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Lockable door

LABO 340 PRO-ACTIVE

The laboratory fridge comes with 1 drawer and 4 shelves as standard.

Capacity 330 l
Temperature setting (approx.) +2 to +15 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power draft 110 Watts
Average consumption 0,65 KWh / 24 h
Overall dimensions (incl. distance from wall) 67 x 69 x 181 (w x d x h in cm)
Interior dimensions 53 x 45 x 128 (w x d x h in cm)
Overall dimensions with door opened at 90° 67 x 127 (w x d in cm)
Drawer inner dimensions 50,4 x 32 x 5,6 (w x d x h in cm)
Shelf dimensions 53 x 39 (w x d in cm)
Max. loading capacity per drawer/shelf 16 kg / 40 kg
Weight 88 kg / 100 kg (net / gross)

(measured values based on Ecool R600a)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 1 drawer and 4 shelves, height- adjustable
• Re-circulating air cooling
• Warning in case of power failure (optical and acoustic)
• Optimized ventilation plates to minimize interior temperature differences
• Easy-to-read LED temperature display
• Automatical defrosting and meltwater evaporation
• Easily accessible control panel with key switch
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Safety device to prevent freezing
• Optical and acoustical alarm
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Lockable door

LABO 468 PRO-ACTIVE

This laboratory refrigerator has 4 vertically adjustable and plastic coated shelves that rest on mountings. The shelves can optionally rest on support rails. Drawers, aluminium trays and wire baskets are available as well.

Capacity 460 l
Temperature setting (approx.) +2 to +15 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power draft 170 Watts
Average consumption 1,00 KWh / 24 h
Overall dimensions (incl. distance from wall) 74 x 80 x 181 (w x d x h in cm)
Interior dimensions 60 x 57 x 128 (w x d x h in cm)
Overall dimensions with door opened at 90° 74 x 144 (w x d in cm)
Shelf dimensions 59 x 50(w x d in cm)
Max. loading capacity per drawer/shelf 24 kg / 40 kg
Weight 109 kg / 122 kg (net / gross)

(measured values based on Ecool R600a)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 4 shelves, height-adjustable
• Re-circulating air cooling
• Warning in case of power failure (optical and acoustic)
• Optimized ventilation plates to minimize interior temperature differences
• Easy-to-read LED temperature display
• Automatical defrosting and meltwater evaporation
• Easily accessible control panel with key switch
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Safety device to prevent freezing
• Optical and acoustical alarm
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Low-noise compressor
• Lockable door

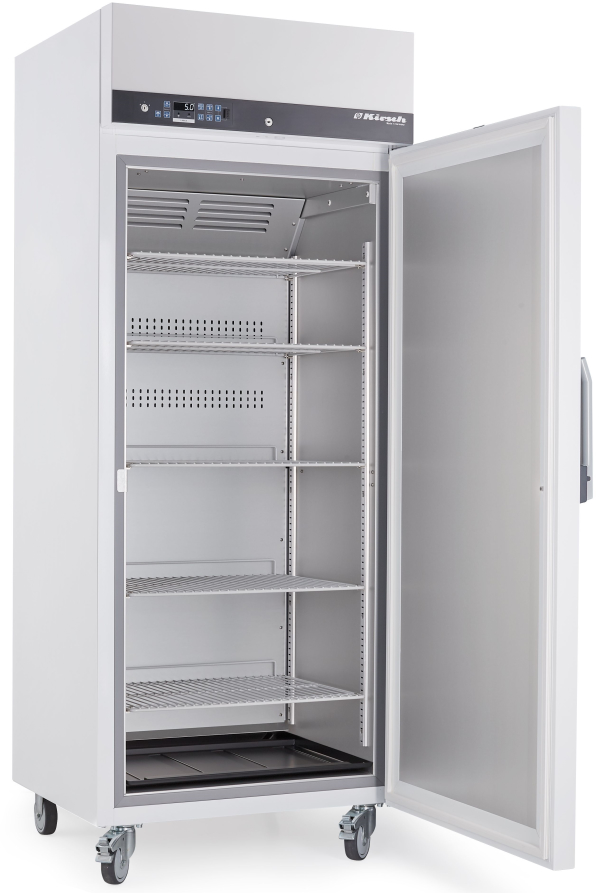

LABO 520 PRO-ACTIVE

This laboratory refrigerator has 5 vertically adjustable and plastic coated shelves that rest on mountings. The shelves can optionally rest on support rails. Drawers, aluminium trays and wire baskets are available as well.

Capacity 500 l
Temperature setting (approx.) +2 to +15 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power draft 250 Watts
Average consumption 1,40 KWh / 24 h
Overall dimensions (incl. distance from wall) 77 x 76 x 195,5 (w x d x h in cm)
Interior dimensions 62 x 57 x 140 (w x d x h in cm)
Overall dimensions with door opened at 90° 74 x 144 (w x d in cm)
Shelf dimensions 59 x 45 (w x d in cm)
Max. loading capacity per drawer/shelf 40 kg
Weight 120 kg / 148 kg (net / gross)

(measured values based on Ecool R600a)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• Castors
• 5 shelves, height-adjustable
• Re-circulating air cooling
• Warning in case of power failure (optical and acoustic)
• Optimized ventilation plates to minimize interior temperature differences
• Easy-to-read LED temperature display
• Automatical defrosting and meltwater evaporation
• Easily accessible control panel with key switch
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Safety device to prevent freezing
• Optical and acoustical alarm
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Low-noise compressor
• Lockable door

LABO 720 PRO-ACTIVE

This laboratory refrigerator has 5 vertically adjustable and plastic coated shelves that rest on mountings. This laboratory refrigerator can optionally be fitted with a glass door.

Capacity 700 l
Temperature setting (approx.) +2 to +15 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power draft 250 Watts
Average consumption 1,46 KWh / 24 h
Overall dimensions (incl. distance from wall) 77 x 98 x 195,5 (w x d x h in cm)
Interior dimensions 62 x 77 x 140 (w x d x h in cm)
Overall dimensions with door opened at 90° 77 x 165 (w x d in cm)
Shelf dimensions 59 x 65 (w x d in cm)
Max. loading capacity per drawer/shelf 40 kg
Weight 145 kg / 174 kg (net / gross)

(measured values based on Ecool R600a)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 5 shelves, height-adjustable
• Castors.
• Re-circulating air cooling
• Warning in case of power failure (optical and acoustic)
• Optimized ventilation plates to minimize interior temperature differences
• Easy-to-read LED temperature display
• Automatical defrosting and meltwater evaporation
• Rapid defrosting
• Easily accessible control panel with key switch
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Safety device to prevent freezing
• Optical and acoustical alarm
• Data documentation can be read via USB interface with KIRSCH Datanet software
• Potential free contact for alarm transmission
• Low-noise compressor

LABO 720 CHROMAT PRO-ACTIVE

This laboratory fridge has a glass door, an integrated power outlet strip with 3 sockets and a cable bushing with a diameter of approximately 7 cm fitted as standard. The cable bushing is located in the middle of the right-side panel.

* Pic. with aluminium basket (optional equipment, not standard configuration)

Capacity 720 l
Temperature setting (approx.) +2 to +15 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power draft 250 Watts
Average consumption 1,63 KWh / 24 h
Overall dimensions (incl. distance from wall) 77 x 98 x 195,5 (w x d x h in cm)
Interior dimensions 62 x 77 x 140 (w x d x h in cm)
Overall dimensions with door opened at 90° 77 x 165 (w x d in cm)
Shelf dimensions 59 x 65 (w x d in cm)
Max. loading capacity per shelf 40 kg
Weight 145 kg / 174 kg (net / gross)

(measured values based on Ecool R600a)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 5 shelves, height-adjustable
• Castors
• Warning in case of power failure (optical and acoustic)
• Insulating glass door and interior light
• Built-in 3-way-socket
• Access port for cables and probes diameter app. 7 cm
• Re-circulating air cooling
• Optimized ventilation plates to minimize interior temperature differences
• Easy-to-read LED temperature display
• Automatical defrosting and meltwater evaporation
• Rapid defrosting
• Easily accessible control panel with key switch
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Safety device to prevent freezing
• Optical and acoustical alarm
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Low-noise compressor
• Potential free contact for alarm transmission
• Low-noise compressor
• Lockable door

EXPLOSION-PROOF VERSION

LABEX®-Intrinsic Safety
The storage of your sensitive and highly flammable substances requires both precise and reliable cooling. All of our LABEX®-Laboratory Refrigerators with the special re-circulating air cooling concept (intrinsically safe) are specifically designed for the storage of explosive materials. Our quality characteristic of Intrinsic Safety is described as follows:

• Intrinsically safe supply of the interior, that means the components do not generate sparks.
• Special conduction concept for electric flows, that may arise due to static charge (e.g., by the operator).

ADVANTAGES

KIRSCH airflow concept: re-circulating air-cooling by means of a cross-flow blower combined with optimized ventilation plates. This concept keeps the temperature constant and reduces natural temperature stratification.

• Structural safety for all non-electrical components
• Energy restriction of the power circuits on the interior
• Temperature sensors are protected by safety barriers
• Re-circulating blower protected by a safety power pack
• Ground protection for the complete refrigerator interior (potential equality)
• Refrigerator interior is not opened to the outside (manual removal of meltwater)
• Material combinations on the inside are non-combustible
• Production facilities are inspected by an independent accredited company

LABEX 105 PRO-ACTIVE

This laboratory refrigerator can be installed normally as well as in an undercounter installation. The temperature and defrosting probes are protected by special safety barriers.

Capacity 95 l
Temperature setting (approx.) +2 to +15 °C
Voltage 220 - 240 V
Frequency 50 / 60 Hz
Power draft 86 Watts
Average consumption 0,43 KWh / 24 h
Overall dimensions (incl. distance from wall) 54 x 54 x 82 (w x d x h in cm)
Interior dimensions 44 x 43 x 47 (w x d x h in cm)
Overall dimensions with door opened at 90° 54 x 106 (w x d in cm)
Drawer inner dimensions 40 x 32 x 5,6 (w x d x h in cm)
Shelf dimensions 43 x 36 (w x d in cm)
Max. loading capacity per drawer/shelf 13 kg / 25 kg
Weight 46 kg / 50 kg (net / gross)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors.
• 1 drawer and 2 shelves
• Explosion-proof interior (LABEX®-Standard Safety)
• Undercounter type
• Lockable door
• Key switch
• Automatic defrosting
• Easy-to-read LED temperature display
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Optical and acoustical alarm
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission

LABEX 288 PRO-ACTIVE

This laboratory fridge features 1 plastic drawer and 3 plastic-coated shelves as standard. All shelves and inserts are vertically adjustable and the device has an explosion-proof interior. A glass door can also be ordered optionally.

Capacity 280 l
Temperature setting (approx.) +0 to +15 °C
Voltage 220 - 240 V
Frequency 50 / 60 Hz
Power draft 100 Watts
Average consumption 0,76 KWh / 24 h
Overall dimensions (incl. distance from wall) 67 x 75 x 131 (w x d x h in cm)
Interior dimensions 53 x 50 x 100 (w x d x h in cm)
Overall dimensions with door opened at 90° 67 x 135 (w x d in cm)
Drawer inner dimensions 50,4 x 32 x 5,6 (w x d x h in cm)
Shelf dimensions 52,7 x 39 (w x d in cm)
Max. loading capacity per drawer/shelf 16 kg / 40 kg
Weight 72 kg / 85 kg (net / gross)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• Re-circulating air cooling
• 1 drawer and 3 shelves, height-adjustable
• Warning in case of power failure (optical and acoustic)
• Explosion-proof interior (LABEX®-Increased-Safety)
• Optimized ventilation plates to minimize interior temperature differences
• Automatic defrosting
• Meltwater tray for manual emptying
• Easy-to-read LED temperature display
• Easily accessible control panel with key switch
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Safety device to prevent freezing
• Optical and acoustical alarm
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission

LABEX 340 PRO-ACTIVE

This laboratory fridge features 2 plastic drawers and 4 plastic-coated shelves as standard. All shelves and inserts are vertically adjustable and the device has an explosion-proof interior. Optionally the laboratory refrigerator can also be fitted with castors

Capacity 330 l
Temperature setting (approx.) +0 to +15 °C
Voltage 220 - 240 V
Frequency 50 / 60 Hz
Power draft 128 Watts
Average consumption 1,14 KWh / 24 h
Overall dimensions (incl. distance from wall) 67 x 69 x 181 (w x d x h in cm)
Interior dimensions 53 x 45 x 128 (w x d x h in cm)
Overall dimensions with door opened at 90° 67 x 127 (w x d in cm)
Drawer inner dimensions 50,4 x 32 x 5,6 (w x d x h in cm)
Shelf dimensions 52,7 x 39 (w x d in cm)
Max. loading capacity per drawer/shelf 16 kg / 40 kg
Weight 93 kg / 105 kg (net / gross)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• Re-circulating air cooling
• 2 drawers and 4 shelves, height-adjustable
• Warning in case of power failure (optical and acoustic)
• Explosion-proof interior (LABEX®-Intrinsic Safety)
• Optimized ventilation plates to minimize interior temperature differences
• Automatic defrosting
• Meltwater tray for manual emptying
• Easy-to-read LED temperature display
• Easily accessible control panel with key switch
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Safety device to prevent freezing
• Optical and acoustical alarm
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission

LABEX 468 PRO-ACTIVE

This laboratory refrigerator features 6 shelves as standard. Plastic drawer with adjustable longitudinal and cross dividers or aluminium trays on telescopic runners are available at an extra cost. All shelves and inserts are vertically adjustable and the device has an explosion-proof interior. A glass door can also be ordered optionally.

Capacity 460 l
Temperature setting (approx.) +0 to +15 °C
Voltage 220 - 240 V
Frequency 50 / 60 Hz
Power draft 170 Watts
Average consumption 1,03 KWh / 24 h
Overall dimensions (incl. distance from wall) 74 x 80 x 181 (w x d x h in cm)
Interior dimensions 60 x 57 x 128 (w x d x h in cm)
Overall dimensions with door opened at 90° 74 x 144 (w x d in cm)
Drawer inner dimensions 57 x 43 x 5,6 (w x d x h in cm)
Shelf dimensions 59 x 50 (w x d in cm)
Max. loading capacity per drawer/shelf 24 kg / 40 kg
Weight 112 kg / 125 kg (net / gross)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• Re-circulating air cooling
• 6 shelves, height-adjustable
• Warning in case of power failure (optical and acoustic)
• Explosion-proof interior (LABEX®-Increased-Safety)
• Optimized ventilation plates to minimize interior temperature differences
• Automatic defrosting
• Meltwater tray for manual emptying
• Easy-to-read LED temperature display
• Easily accessible control panel with key switch
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Safety device to prevent freezing
• Optical and acoustical alarm
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission

LABEX 520 PRO-ACTIVE

The LABEX®-520 offers you five standard integrated shelves and 500 liters capacity plenty of storage space for your refrigerated goods. The interior is completely flexible adapting to your needs. The interior is explosion-proof and intrinsically safe. A glass door can also be ordered optionally.

Capacity 500 l
Temperature setting (approx.) +0 to +15 °C
Voltage 220 - 240 V
Frequency 50 / 60 Hz
Power draft 234 Watts
Average consumption 1,2 KWh / 24 h
Overall dimensions (incl. distance from wall) 77 x 76 x 195,5 (w x d x h in cm)
Interior dimensions 62 x 57 x 140 (w x d x h in cm)
Overall dimensions with door opened at 90° 77 x 144 (w x d in cm)
Shelf dimensions 59 x 45 (w x d in cm)
Max. loading capacity per shelf 40 kg
Weight 120 kg / 148 kg (net / gross)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors.
• Re-circulating air cooling
• Castors
• Warning in case of power failure (optical and acoustic)
• 5 shelves, height-adjustable
• Explosion-proof interior (LABEX®-Intrinsic Safety)
• Optimized ventilation plates to minimize interior temperature differences
• Automatic defrosting
• Meltwater tray for manual emptying
• Easy-to-read LED temperature display
• Easily accessible control panel with key switch
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Safety device to prevent freezing
• Optical and acoustical alarm
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Low-noise compressor

LABEX 720 PRO-ACTIVE

This laboratory refrigerator offers five standard integrated shelves and with 700 liters capacity plenty of storage space for your refrigerated goods. The forced air cooling ensures a nearly uniform temperature distribution in the interior, which is explosion-proof and intrinsically safe. The interior can be extended optional.

Capacity 700 l
Temperature setting (approx.) +0 to +15 °C
Voltage 220 - 240 V
Frequency 50 / 60 Hz
Power draft 237 Watts
Average consumption 1,23 KWh / 24 h
Overall dimensions (incl. distance from wall) 77 x 98 x 195,5 (w x d x h in cm)
Interior dimensions 62 x 77 x 140 (w x d x h in cm)
Overall dimensions with door opened at 90° 77 x 165 (w x d in cm)
Shelf dimensions 59 x 65 (w x d in cm)
Max. loading capacity per shelf 40 kg
Weight 145 kg / 174 kg (net / gross)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors.
• Re-circulating air cooling
• Castors
• Warning in case of power failure (optical and acoustic)
• 5 shelves, height-adjustable
• Explosion-proof interior (LABEX®-Intrinsic Safety)
• Optimized ventilation plates to minimize interior temperature differences
• Automatic defrosting
• Meltwater tray for manual emptying
• Easy-to-read LED temperature display
• Easily accessible control panel with key switch
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Safety device to prevent freezing
• Optical and acoustical alarm
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Low-noise compressor

Laboratory freezers

KIRSCH Laboratory Freezers stand out particularly thanks to their thick housing insulation made of high-quality, pressure-foamed material. Our LABEX models are explosion-proof. The storage temperature can be adjusted between -5 °C and -30 °C depending on the model..

WITHOUT EXPLOSION-PROOF INTERIOR
Maximized temperature stability and a thick housing insulation made of high-quality, pressure-foamed material. Each laboratory freezer guarantees safe storage for your sensitive goods.

FROSTER LABO 330 PRO-ACTIVE

This laboratory freezer features re-circulating air cooling, a rapid defrosting system and a quick-freeze function. 4 plastic-coated shelves on mountings are fitted as standard. The shelves can optionally rest on support rails. Besides this standard option wire baskets on runners are also available.

Capacity 300 l
Temperature setting (approx.) -10 to -30 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power draft 590 Watts
Average consumption 3,69 KWh / 24 h
Overall dimensions (incl. distance from wall) 74 x 77 x 166 (w x d x h in cm)
Interior dimensions 59,5 x 53 x 95 (w x d x h in cm)
Overall dimensions with door opened at 90° 74 x 141 (w x d in cm)
Shelf dimensions 57 x 42 (w x d in cm)
Max. loading capacity per shelf 40 kg
Weight 127 kg / 142 kg (net / gross)

(Measured values based on Frigen R404a)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 4 shelves, height-adjustable
• Re-circulating air cooling
• Optimized ventilation plates to minimize interior temperature differences
• Additional warning in case of power failure (optical and acoustic)
• Rapid freezing cycle
• Easy-to-read LED temperature display
• Automatical defrosting and meltwater evaporation
• Easily accessible control panel with key switch
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Optical and acoustical alarm
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Lockable door

FROSTER LABO 530 PRO-ACTIVE

This laboratory refrigerator features re-circulating air cooling, a rapid defrosting system and a quick-freeze function. 5 plastic-coated shelves on mountings are fitted as standard. The shelves can optionally rest on support rails. Drawers, aluminium trays and wire baskets are available as well.

Capacity 500 l
Temperature setting (approx.) -10 to -30 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power draft 605 Watts
Average consumption 7,22 KWh / 24 h
Overall dimensions (incl. distance from wall) 77 x 76 x 195,5 (w x d x h in cm)
Interior dimensions 60 x 57 x 140 (w x d x h in cm)
Overall dimensions with door opened at 90° 77 x 144 (w x d in cm)
Shelf dimensions 59 x 65 (w x d in cm)
Max. loading capacity per shelf 40 kg
Weight 140 kg / 183 kg (net / gross)

(Measured values based on Frigen R404a)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 5 shelves, height-adjustable
• Castors
• Re-circulating air cooling
• Optimized ventilation plates to minimize interior temperature differences
• Additional warning in case of power failure (optical and acoustic)
• Rapid freezing cycle
• Easy-to-read LED temperature display
• Automatical defrosting and meltwater evaporation
• Easily accessible control panel with key switch
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Lockable door

FROSTER LABO 730 PRO-ACTIVE

This laboratory refrigerator features re-circulating air cooling, a rapid defrosting system and a quick-freeze function. 5 plastic-coated shelves on mountings are fitted as standard. The shelves can optionally rest on support rails. Drawers, aluminium trays and wire baskets are available as well.

Capacity 700 l
Temperature setting (approx.) -10 to -30 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power draft 605 Watts
Average consumption 7,51 KWh / 24 h
Overall dimensions (incl. distance from wall) 77 x 97 x 195,5 (w x d x h in cm)
Interior dimensions 60 x 78 x 140 (w x d x h in cm)
Overall dimensions with door opened at 90° 77 x 165 (w x d in cm)
Shelf dimensions 59 x 65 (w x d in cm)
Max. loading capacity per shelf 40 kg
Weight 165 kg / 200 kg (net / gross)

(Measured values based on Frigen R404a)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 5 shelves, height-adjustable
• Castors
• Re-circulating air cooling
• Optimized ventilation plates to minimize interior temperature differences
• Additional warning in case of power failure (optical and acoustic)
• Rapid freezing cycle
• Easy-to-read LED temperature display
• Automatical defrosting and meltwater evaporation
• Easily accessible control panel with key switch
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Lockable door

FROSTER LABEX 96 PRO-ACTIVE

This laboratory refrigerator features 2 coated shelves height-adjustable.

Capacity 95 l
Temperature setting (approx.) -5 to -25 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power draft 119 Watts
Average consumption 1,36 KWh / 24 h
Overall dimensions (incl. distance from wall) 54 x 54 x 82 (w x d x h in cm)
Interior dimensions 44 x 42 x 47 (w x d x h in cm)
Overall dimensions with door opened at 90° 54 x 106 (w x d in cm)
Shelf dimensions 43 x 36 (w x d in cm)
Max. loading capacity per shelf 25 kg
Weight 42 kg / 50 kg (net / gross)

(Measured values based on Frigen R404a)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors.
• 2 shelves, height-adjustable
• Re-circulating air cooling
• Explosion-proof interior (LABEX®-Intrinsic Safety)
• Optimized ventilation plates to minimize interior temperature differences
• Additional warning in case of power failure (optical and acoustic)
• Automatic defrosting
• Meltwater tray for manual emptying
• Rapid freezing cycle
• Easy-to-read LED temperature display
• Easily accessible control panel with key switch
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Optical and acoustical alarm
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Lockable door

FROSTER LABEX 330 PRO-ACTIVE

This laboratory freezer features re-circulating air cooling, a rapid defrosting system and a quick-freeze function. The unit also features an explosion-proof interior. 4 plastic-coated shelves on mountings are fitted as standard. The shelves can optionally rest on telescopic runner. Besides this standard option wire baskets on runners are also available.

Capacity 300 l
Temperature setting (approx.) -10 to -30 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power draft 540 Watts
Average consumption 4,33 KWh / 24 h
Overall dimensions (incl. distance from wall) 74 x 78 x 159 (w x d x h in cm)
Interior dimensions 59 x 52 x 95 (w x d x h in cm)
Overall dimensions with door opened at 90° 74 x 142 (w x d in cm)
Shelf dimensions 57 x 42 (w x d in cm)
Max. loading capacity per shelf 40 kg
Weight 127 kg / 142 kg (net / gross)

(Measured values based on Frigen R404a)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 4 shelves, height-adjustable
• Re-circulating air cooling
• Explosion-proof interior (LABEX®-Intrinsic Safety)
• Optimized ventilation plates to minimize interior temperature differences
• Additional warning in case of power failure (optical and acoustic)
• Automatic defrosting
• Meltwater tray for manual emptying
• Rapid freezing cycle
• Easy-to-read LED temperature display
• Easily accessible control panel with key switch
• Micro-processor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Optical and acoustical alarm
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Lockable door

FROSTER LABEX 530 PRO-ACTIVE

This laboratory freezer features re-circulating air cooling, a rapid defrosting system and a quick-freeze function. 5 plastic-coated shelves on mountings are fitted as standard. The shelves can optionally rest on support rails. Drawers, aluminium trays and wire baskets are available as well.

Capacity 500 l
Temperature setting (approx.) -10 to -30 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power draft 550 Watts
Average consumption 5,8 KW / 24 h
Overall dimensions (incl. distance from wall) 77 x 76 x 195,5 (w x d x h in cm)
Interior dimensions 62 x 57 x 140 (w x d x h in cm)
Overall dimensions with door opened at 90° 77 x 144 (w x d in cm)
Shelf dimensions 59 x 45 (w x d in cm)
Max. loading capacity per shelf 40 kg
Weight 138 kg / 163 kg (net / gross)

(Measured values based on Frigen R404a)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors.
• 5 shelves, height-adjustable
• Castors
• Re-circulating air cooling
• Explosion-proof interior (LABEX®-Intrinsic Safety)
• Optimized ventilation plates to minimize interior temperature differences
• Additional warning in case of power failure (optical and acoustic)
• Automatic defrosting
• Meltwater tray for manual emptying
• Rapid freezing cycle
• Easy-to-read LED temperature display
• Easily accessible control panel with key switch
• Micro-processor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Optical and acoustical alarm
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Lockable door

FROSTER LABEX 730 PRO-ACTIVE

This laboratory freezer has 5 vertically adjustable and plastic coated shelves that rest on mountings. This laboratory freezer can also be fitted with wire baskets and aluminium trays on runners at a surcharge.

Capacity 700 l
Temperature setting (approx.) -10 to -30 °C
Voltage 220 - 240 V
Frequency 50 Hz
Power draft 550 Watts
Average consumption 6,02 KWh/ 24 h
Overall dimensions (incl. distance from wall) 77 x 98 x 195,5 (w x d x h in cm)
Interior dimensions 62 x 77 x 140 (w x d x h in cm)
Overall dimensions with door opened at 90° 77 x 166 (w x d in cm)
Shelf dimensions 59 x 65 (w x d in cm)
Max. loading capacity per shelf 40 kg
Weight 165 kg / 200 kg (net / gross)

(Measured values based on Frigen R404a)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 5 shelves, height-adjustable
• Castors
• Re-circulating air cooling
• Explosion-proof interior (LABEX®-Intrinsic Safety)
• Additional warning in case of power failure (optical and acoustic)
• Optimized ventilation plates to minimize interior temperature differences
• Automatic defrosting
• Meltwater tray for manual emptying
• Rapid freezing cycle
• Easy-to-read LED temperature display
• Easily accessible control panel with key switch
• Micro-processor controlled temperature and thawing regulation to maximize temperature stability
• Minimum/Maximum temperature memory
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Lockable door
