BL 100 PRO-ACTIVE

according to DIN 58371, medical product certified according to DIN ISO 13485

This blood bank fridge can be installed normally and also in an undercounter-type installation. Door coupling fittings or decorative frames are available at an extra cost. When the device is being installed as a stand-alone unit we can optionally supply a matching tabletop.

Capacity 95 l
Temperature setting +4 °C
Voltage 220 - 240 V
Frequency 50 / 60 Hz
Power consumption 92 Watts
Average consumption 0,64 KWh / 24 h
Overall dimensions incl. distance from wall 54 x 54 x 82 (w x d x h in cm)
Interior dimensions 44 x 43 x 47 (w x d x h in cm)
Overall dimensions with door open at 90° 54 x 106 (w x d in cm)
Drawer inner dimensions 37 x 32 x 8,5 (w x d x h in cm)
Loading capacity per drawer 25 kg
Weight 46 kg / 55 kg (net / gross)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 2·drawers
• Undercounter type
• Comfort controller
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Battery for power failure alarm
• Re-circulation air-cooling
• Automatic defrosting
• Meltwater evaporation
• Easily accessible control panel with key switch
• Easy-to-read LED temperature display
• Optical and acoustical warning signal including power failure alarm
• Minimum/Maximum temperature memory
• Saftey control device prevents freezing
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Low-noise compressor
• Lockable door

BL 176 PRO-ACTIVE

according to DIN 58371, medical product certified according to DIN ISO 13485

Our blood bank fridges can be connected to the central control unit via the potential-free contacts which are integrated as standard. A device for data evaluation can be connected to the integrated RS-485 interface.

Capacity 170 l
Temperature setting +4 °C
Voltage 220 - 240 V
Frequency 50 / 60 Hz
Power consumption 120 Watts
Average consumption 1,22 KWh / 24 h
Overall dimensions incl. distance from wall 70 x 77 x 122 (w x d x h in cm)
Interior dimensions 55 x 52 x 60 (w x d x h in cm)
Usable dimensions 53 x 41 x 47 (w x d x h in cm)
Overall dimensions with door open at 90° 70 x 136 (w x d in cm)
Drawer inner dimensions 50 x 34 x 10 (w x d x h in cm)
Loading capacity per drawer 50 kg
Weight 77 kg / 87 kg (net / gross)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 2 aluminium drawers
• Comfort controller
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Battery for power failure alarm
• Re-circulation air-cooling
• Optimized ventilation plates to minimize interior temperature differences
• Automatic defrosting
• Meltwater evaporation
• Easy-to-read LED temperature display
• Easily accessible control panel with key switch
• Optical and acoustical warning including power failure alarm
• Minimum/Maximum temperature memory
• Saftey control device prevents freezing
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Lockable door

BL 300 PRO-ACTIVE

according to DIN 58371, medical product certified according to DIN ISO 13485

Our blood bank fridges can be connected to the central control unit via the potential-free contacts which are integrated as standard. A device for data evaluation can be connected to the integrated RS-485 interface.

Capacity 280
Temperature setting +4 °C
Voltage 220 - 240 V
Frequency 50 / 60 Hz
Power consumption 95 Watts
Average consumption 0,63 KWh / 24 h
Overall dimensions incl. distance from wall 67 x 75 x 124 (w x d x h in cm)
Interior dimensions 55 x 51 x 100 (w x d x h in cm)
Overall dimensions with door open at 90° 67 x 133 (w x d in cm)
Drawer inner dimensions of 3 upper drawers 49 x 39 x 10 (w x d x h in cm)
Drawer inner dimensions of 3 of the upper drawer below 51 x 31 x 10 (w x d x h in cm)
Loading capacity per drawer 50 kg
Weight 82 kg / 92 kg (net / gross)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 4 aluminium drawers
• Comfort controller
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Battery for power failure alarm
• Re-circulation air-cooling
• Optimized ventilation plates to minimize interior temperature differences
• Automatic defrosting
• Meltwater evaporation
• Easy-to-read LED temperature display
• Easily accessible control panel with key switch
• Optical and acoustical warning including power failure alarm
• Minimum/Maximum temperature memory
• Saftey control device prevents freezing
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Lockable door

BL 520 PRO-ACTIVE

according to DIN 58371

This blood bank fridge features 5 vertically adjustable drawers made of aluminium as standard. A set with 4 adjustable longitudinal and 25 adjustable cross dividers for each drawer is optionally available.

Capacity 500 l
Temperature setting +4 °C
Voltage 220 - 240 V
Frequency 50 / 60 Hz
Power consumption 250 Watts
Average consumption 1,5 KWh / 24 h
Overall dimensions incl. distance from wall 77 x 76 x 195,5 (w x d x h in cm)
Interior dimensions 62 x 56 x 140 (w x d x h in cm)
Overall dimensions with door open at 90° 77 x 144 (w x d in cm)
Drawer inner dimensions 56 x 39 x 10 (w x d x h in cm)
Loading capacity per drawer 50 kg
Weight 139 kg / 160 kg (net / gross)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 5 aluminium drawers
• Castors
• Full extension drawer
• Comfort controller
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Battery for power failure alarm
• Re-circulation air-cooling
• Optimized ventilation plates to minimize interior temperature differences
• Rapid defrosting
• Meltwater evaporation
• Drawers height-adjustable
• Easy-to-read LED temperature display
• Easily accessible control panel with key switch
• Minimum/Maximum temperature memory
• Optical and acoustical warning including power failure alarm
• Saftey control device prevents freezing
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Low-noise compressor
• Lockable door

BL 720 PRO-ACTIVE

according to DIN 58371

In most of our blood bank fridge an LED batten light fitting can be installed at an extra cost which guarantees that the interior is well-lit. We are also able to supply lockable glass doors, so you can look inside without having to open the door.

Capacity 700 l
Temperature setting +4 °C
Voltage 220 - 240 V
Frequency 50 / 60 Hz
Power consumption 250 Watts
Average consumption 1,56 KWh / 24 h
Overall dimensions incl. distance from wall 77 x 98 x 195,5 (w x d x h in cm)
Interior dimensions 62 x 77 x 140 (w x d x h in cm)
Overall dimensions with door open at 90° 77 x 166 (w x d in cm)
Drawer inner dimensions 56 x 60 x 10 (w x d x h in cm)
Loading capacity per drawer 50 kg
Weight 171 kg / 196 kg (net / gross)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 5 aluminium drawers
• Castors
• Comfort controller
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Battery for power failure alarm
• Re-circulation air-cooling
• Optimized ventilation plates to minimize interior temperature differences
• Rapid defrosting
• Meltwater evaporation
• Drawers height-adjustable
• Easy-to-read LED temperature display
• Easily accessible control panel with key switch
• Minimum/Maximum temperature memory
• Optical and acoustical warning including power failure alarm
• Saftey control device prevents freezing
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Lockable door

Plasma freezers

BL models are our top products. Each blood plasma freezer is particularly highly insulated and offers numerous KIRSCH innovations as standard equipment. To ensure the highest possible safety and quality of our blood equipment, Kirsch is certified according to ISO 13485. This certification proves compliance with the relevant regulations for the manufacture of medical products.
Manufactured according to DIN 58375.

Standard equipment:

• DIN 58375 compliant
• Aluminium / stainless steel drawers
• Comfort controller
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Battery for power failure alarm
• Heated door frame
• Re-circulating air cooling
• Optimized ventilation plates to minimize interior temperature differences
• Rapid defrosting
• Meltwater evaporation
• Height-adjustable drawers*
• Easily accessible control panel with key switch
• Easy-to-read LED temperature display
• Optical and acoustical warning including power failure alarm
• Minimum/Maximum temperature memory
• RS-485 interface for computer-based temperature documentation
• Potential free contact for alarm transmission.

*Except FROSTER-BL-178, FROSTER-BL-180 and FROSTER-BL-650.

Built According to· DIN 58375 Regulation

A re-circulating air cooling system is integrated as standard and reduces the physically induced temperature drop and enables an almost constant temperature to be maintained in the freezers.

Blood plasma freezers with -32 °C and -40 °C are available for plasma storage. The temperature is maintained automatically by an electronic, microprocessor-controlled temperature regulator, even in the event of changing ambient temperatures. Rapid defrosting with thermal and temporal monitoring takes place automatically. The required plasma storage temperature is maintained thanks to the reversing of the refrigerant circuit.

The standard equipment features of KIRSCH blood plasma freezers include an electronic switching, monitoring and warning device, a minimum/maximum temperature memory, an RS485 interface and potential-free contact for connection to the central control technology.

FROSTER BL 178 PRO-ACTIVE

according to DIN 58375

All KIRSCH Blood Plasma Freezers are fitted with an automatic rapid defrosting system. The defrosting process is thermally monitored and temporarily limited. This prevents freezing of the interior and the temperature of the appliance’s contents is being kept constant in accordance with applicable regulations.

Capacity 170 l
Temperature setting (approx.) -32°C
Voltage 220 - 240 V
Frequency 50 Hz
Power consumption 500 Watt
Average consumption 4,88 KWh / 24 h
Overall dimensions incl. distance from wall 70 x 77 x 122 (w x d x h in cm)
Interior dimensions 55 x 52 x 60 (w x d x h in cm)
Overall dimensions with door open at 90° 70 x 136 (w x d in cm)
Drawer inner dimensions 50 x 34 x 10 (w x d x h in cm)
Max. loading capacity per drawer 50 kg
Weight 92 kg / 105 kg (net / gross)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 3 aluminium drawers
• Comfort controller
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Battery for power failure alarm
• Heated door frame
• Re-circulating air-cooling
• Optimized ventilation plates to minimize interior temperature differences
• Rapid defrosting
• Meltwater evaporation
• Easily accessible control panel with key switch
• Easy-to-read LED temperature display
• Optical and acoustical warning including power failure alarm
• Minimum/Maximum temperature memory
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Lockable door

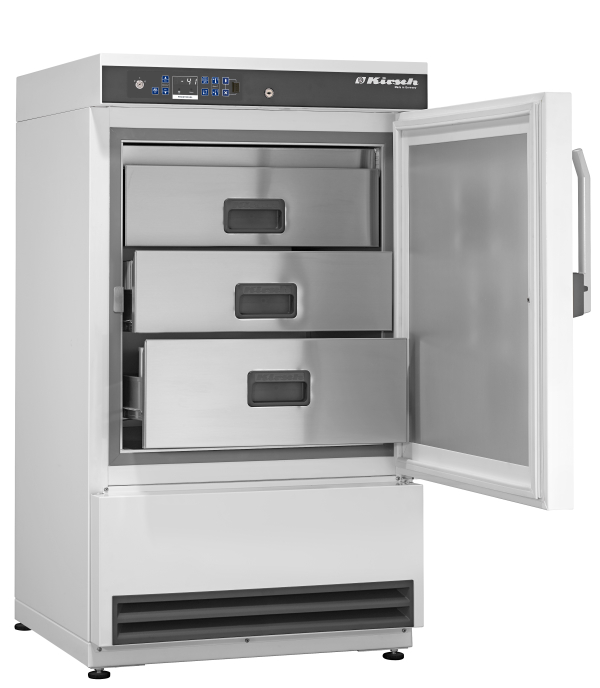

FROSTER BL 180 PRO-ACTIVE

according to DIN 58375

All KIRSCH Blood Plasma Freezers are fitted with an automatic rapid defrosting system. The defrosting process is thermally monitored and temporarily limited. This prevents freezing of the interior and the temperature of the appliance’s contents is being kept constant in accordance with applicable regulations.

Capacity 170 l
Temperature setting (approx.) -41°C
Voltage 220 - 240 V
Frequency 50 Hz
Power consumption 453 Watt
Average consumption 6,54 KWh / 24 h
Overall dimensions incl. distance from wall 70 x 77 x 122 (w x d x h in cm)
Interior dimensions 55 x 52 x 60 (w x d x h in cm)
Overall dimensions with door open at 90° 70 x 136 (w x d in cm)
Drawer inner dimensions 50 x 32 x 10 (w x d x h in cm)
Max. loading capacity per drawer 50 kg
Weight 100 kg / 110 kg (net / gross)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 3 aluminium drawers
• Comfort controller
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Battery for power failure alarm
• Heated door frame
• Re-circulating air-cooling
• Optimized ventilation plates to minimize interior temperature differences
• Rapid defrosting
• Meltwater evaporation
• Easily accessible control panel with key switch
• Easy-to-read LED temperature display
• Optical and acoustical warning including power failure alarm
• Minimum/Maximum temperature memory
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Lockable door

FROSTER BL 330 PRO-ACTIVE

according to DIN 58375

This model features 4 vertically adjustable drawers made of aluminium which rest on telescopic runners. Drawers made of stainless steel are optionally available. We also supply dividers for a neatly and clearly arranged storage of the goods for both types of drawers.

Capacity 300 l
Temperature setting (approx.) -32°C
Voltage 220 - 240 V
Frequency 50 Hz
Power consumption 550 Watt
Average consumption 6,59 KWh / 24 h
Overall dimensions incl. distance from wall 74 x 78 x 159 (w x d x h in cm)
Interior dimensions 59 x 52 x 95 (w x d x h in cm)
Overall dimensions with door open at 90° 74 x 142 (w x d in cm)
Drawer inner dimensions 50 x 37 x 10 (w x d x h in cm)
Max. loading capacity per drawer 50 kg
Weight 120 kg / 135 kg (net / gross)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 4 aluminium drawers
• Comfort controller
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Battery for power failure alarm
• Heated door frame
• Re-circulating air-cooling
• Optimized ventilation plates to minimize interior temperature differences
• Rapid defrosting
• Meltwater evaporation
• Easily accessible control panel with key switch
• Easy-to-read LED temperature display
• Optical and acoustical warning including power failure alarm
• Minimum/Maximum temperature memory
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Lockable door

FROSTER BL 530 PRO-ACTIVE

according to DIN 58375

For all blood plasma freezers a PC-Kit is available for temperature evaluation, monitoring and documentation. Monitoring can also be done with the KIRSCH-DATANET Software-package. You find more information on this software in the corresponding description "KIRSCH-PC-KIT".

Capacity 500 l
Temperature setting (approx.) -32°C
Voltage 220 - 240 V
Frequency 50 Hz
Power consumption 740 Watt
Average consumption 10,81 KWh / 24 h
Overall dimensions incl. distance from wall 77 x 76 x 195,5 (w x d x h in cm)
Interior dimensions 62 x 56 x 140 (w x d x h in cm)
Overall dimensions with door open at 90° 77 x 144 (w x d in cm)
Drawer inner dimensions 56 x 39 x 10 (w x d x h in cm)
Max. loading capacity per drawer 50 kg
Weight 161 kg / 183 kg (net / gross)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 5 aluminium drawers
• Castors
• Full extension drawer
• Comfort controller
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Battery for power failure alarm
• Heated door frame
• Re-circulation air-cooling
• Optimized ventilation plates to minimize interior temperature differences
• Rapid defrosting
• Meltwater evaporation
• Height-adjustable drawers
• Easily accessible control panel with key switch
• Easy-to-read LED temperature display
• Optical and acoustical warning including power failure alarm
• Minimum/maximum temperature memo
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Lockable door

FROSTER BL 650 PRO-ACTIVE

according to DIN 58375

Storage temperature of this freezer is -41°C. A two-stage refrigeration machine generates the necessary cooling so that this temperature is kept constant. This enables operation of the freezer in ambient temperatures of up to +32°C.

Capacity 650 l
Temperature setting (approx.) -41°C
Voltage 220 - 240 V
Frequency 50 Hz
Power consumption 990 Watt
Average consumption 14,32 KWh / 24 h
Overall dimensions incl. distance from wall 83 x 102 x 197 (w x d x h in cm)
Interior dimensions 62 x 76 x 131 (w x d x h in cm)
Overall dimensions with door open at 90° 86 x 177 (w x d in cm)
Drawer inner dimensions, upper drawers 59 x 56 x 22 (w x d x h in cm)
Drawer inner dimensions, 4 drawers below 59 x 62 x 22
Max. loading capacity per drawer 50 kg
Weight 220 kg / 260 kg (net / gross)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 5 stainless steel drawers
• Comfort controller
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Battery for power failure alarm
• Heated door frame
• Re-circulation air-cooling
• Optimized ventilation plates to minimize interior temperature differences
• Rapid defrosting
• Meltwater evaporation
• Easily accessible control panel with key switch
• Easy-to-read LED temperature display
• Optical and acoustical warning including power failure alarm
• Minimum/Maximum temperature memory
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Lockable door

FROSTER BL 730 PRO-ACTIVE

according to DIN 58375

Selected models can be fitted with a water-cooled refrigeration machine on request. The generated heat gets derived into a cold water cycle, which is already installed in the device. This provides thermal relief in the installation room.

Capacity 700 l
Temperature setting (approx.) -32°C
Voltage 220 - 240 V
Frequency 50 Hz
Power consumption 790 Watt
Average consumption 11,1 KWh / 24 h
Overall dimensions incl. distance from wall 77 x 98 x 195,5 (w x d x h in cm)
Interior dimensions 62 x 77 x 140 (w x d x h in cm)
Overall dimensions with door open at 90° 77 x 166 (w x d in cm)
Drawer inner dimensions 56 x 60 x 10 (w x d x h in cm)
Max. loading capacity per drawer 50 kg
Weight 202 kg / 237 kg (net / gross)

• PRO-ACTIVE- Control:
  Permanent, proactive monitoring of the performance data and alerts in the case of deviations – so that you can take countermeasures in good time before a fault threatens your chilled goods; world´s most accurate temperature control in refrigerated areas thanks to two standard PT-1000 sensors
• 5 aluminium drawers
• Castors
• Comfort controller
• Microprocessor controlled temperature and thawing regulation to maximize temperature stability
• Battery for power failure alarm
• Heated door frame
• Re-circulating air-cooling
• Optimized ventilation plates to minimize interior temperature differences
• Rapid defrosting
• Meltwater evaporation
• Easily accessible control panel with key switch
• Easy-to-read LED temperature display
• Optical and acoustical warning including power failure alarm
• Minimum/Maximum temperature memory
• Data documentation can be read via USB interface with KIRSCH Datanet software.
• Potential free contact for alarm transmission
• Lockable door
